PRECAST CONCRETE: PRECISION ENGINEERING FOR CIRCULAR STAIR TREADS

The Ft. Worth Arena has circular stairs leading to the entry level as shown in the image below. The AAS team custom fabricated the stone pieces using wet-pour architectural precast concrete to realize the design vision of concentric circular pattern.



Ft Worth Arena Project | Concentric Circles of Stair Treads Achieved using Wet-pour Architectural Precast Concrete

Ft Worth Arena Project | Concentric Circles of Stair Treads Achieved using Wet-pour Architectural Precast Concrete



Precision Engineering, Design Assist, Construction Assist



  • The AAS team developed custom molds for unique radial shape of the stone pieces required for stair treads at every step/level.
  • The molds design included the circular grooves required on each stone piece.
  • The shape, size and tolerance for each stone piece was confirmed in the design phase using CAD drawings.
  • The project team provided detailed settings plan that identified position of every stone piece.

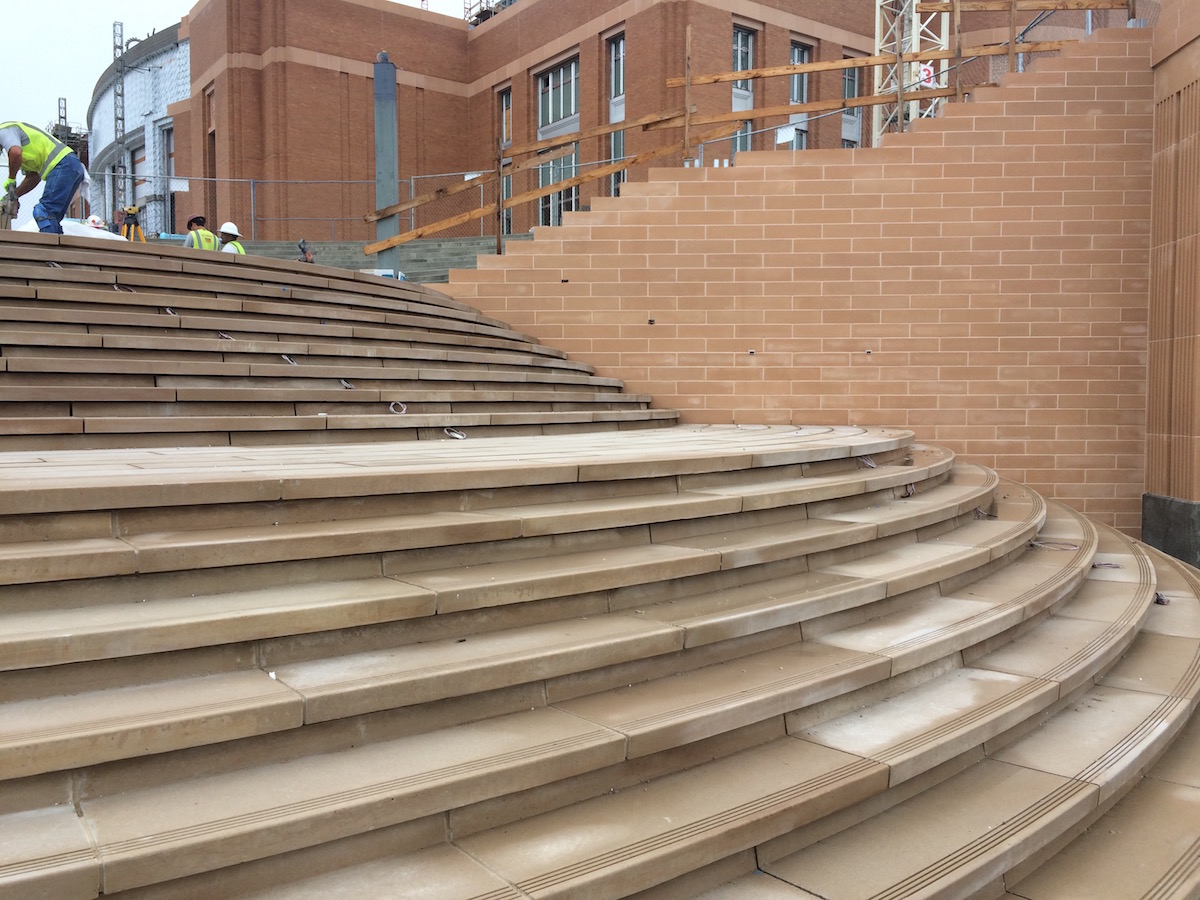

Ft Worth Arena | Wet-pour Architectural Precast Concrete Stone for Circular Stair Tread DesignProject Specific Fabrication of Stone Panels | Product: Wet-pour Precast ConcreteGrooves in the Stone Pieces to Match Overall Pattern of Circular Stair Tread Designed using Precast Concrete StoneDesign Freedom, Flexibility with Custom Manufacturing of Architectural Stone | Precast Concrete Pieces Fitting Flawlessly to Realize Design VisionPrecise Custom Molds with Stringent Tolerance Requirements Confirmed using CAD Drawings | Project Specific Manufacturing for High-end Design, Smooth Project ExecutionAAS Project Planning, Collaboration Matched Manufacturing Schedule with Building Construction Milestones



The in-house color lab developed batch mixes to coordinate color of the precast concrete panels with the dry vibrant-tamp cast stone, and GFRC panels used on the exterior façade & surrounding support buildings of the arena.

Detailed engineering enabled stair treads design to dissolve with the overall end user experience.
